4mm Thickness TKⅡ6305 Round Edge Bearing Housing For Conveyor Roller

Model Number : TKⅡ Turn Up Bearing Housing

Certification : ISO 9001

Place of Origin : Anhui China

MOQ : 1000 pcs

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 10000 sets/week

Delivery Time : 10 work days

Packaging Details : Wooden case

Type : Stamping bearing housing

Applicable Industries : Building Material Shops, Energy & Mining

Service : OEM Customized Services

Contact Now

4mm Thickness TKⅡ6305 Round Edge Bearing Housing For Conveyor Roller

1. Bearing: 6305

2. Bearing seat diameter: 62 mm

3. Hole diameter: 35 mm

4. Deepness: 36.5 mm

5. Thickness: 4.0 mm

6. Fold back height: 15mm

Product (TKⅡ Series Bearing Housing and Seals): Our punch press bearing housing and the relative seals have the advantage of high precision, good gloss, without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel maker in China, so quality is guaranteed.

TKⅡ Bearing Housing Specification

TKII Bearing Housings
Unit: mm
Bearing	Shaft Diameter	Pipe O.D.	Bearing Housing O.D.	Upper Bore Diameter	Bottom Bore Diameter	Bearing O.D.	Depth	Thickness
6305	25	89	83/84/85	62	30	62	35	3.0
		102	97					3.0
		108	103					3.0
		114	109/110/111					3.0
		127	121/122					3.0
		133	127/128					3.0/3.5
		140	134/135/136					3.0/3.5
		152	146/147					3.0/3.5
		159	153					3.0/3.5/4.0
		165	160					3.0/3.5/4.0
		168	161					3.0/3.5/4.0
		176	170					3.0/3.5/4.0
		178	172					3.0/3.5/4.0
		194	188					3.0/3.5/4.0

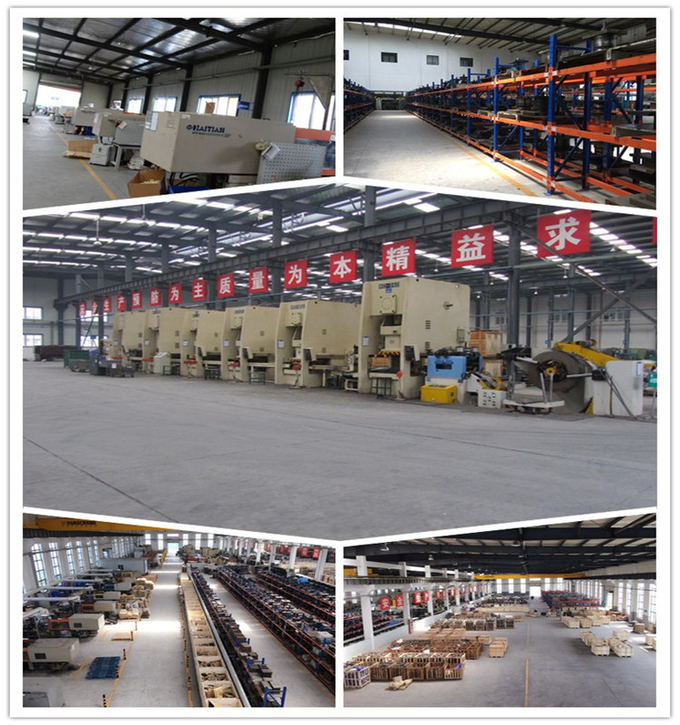

Factory Show

Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,

and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which

make us the largest and most professional bearing housing maker in China.
